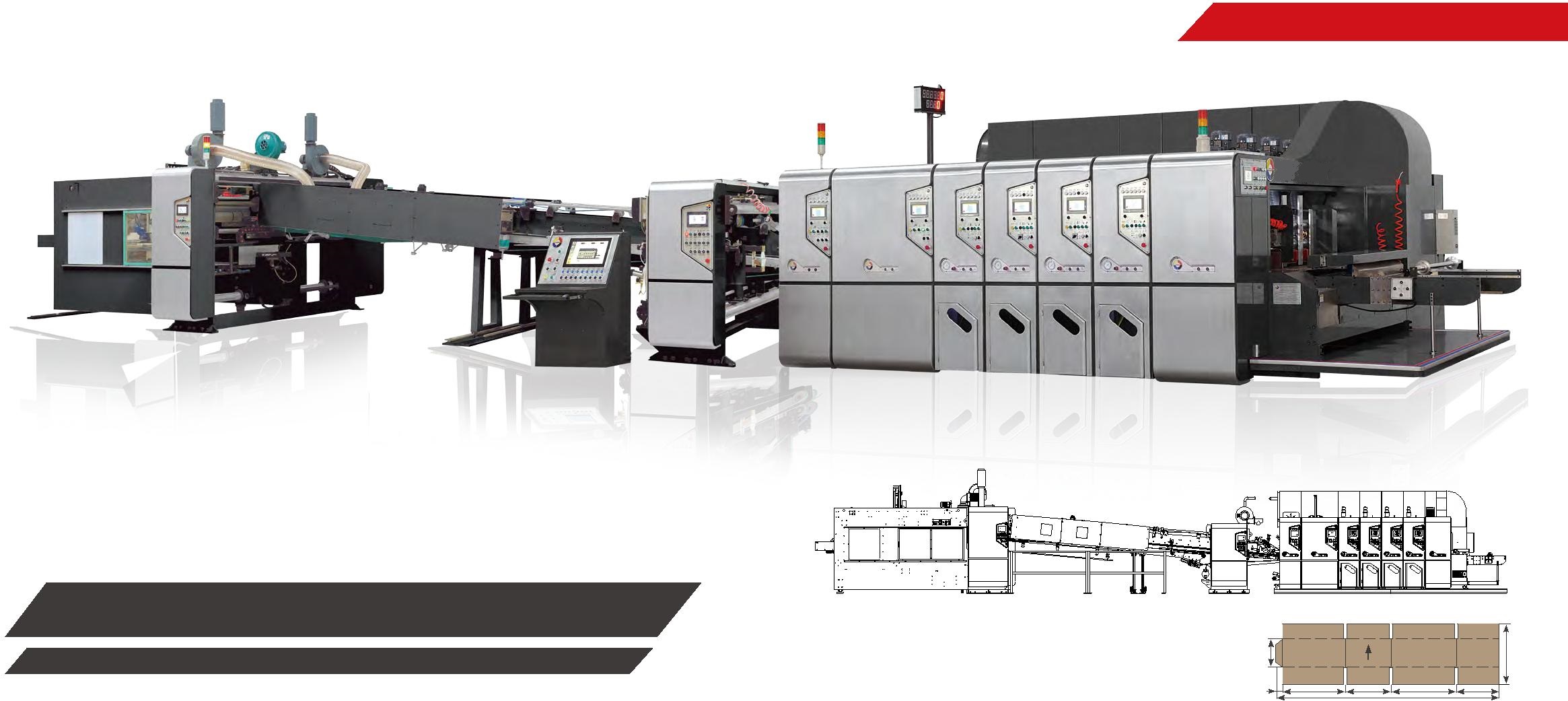

In-line Folder Gluer



Specification:


Standard equipments consists of:
Main function and configuration

(1)formfeed section
1.Lead edge feeder applying to high speed feeding
2.Feeding precisely even with warping paperboard

(2)spray glue system
1.Cooperate with the world famous supplier(VALCO) to ensure fine service anywhere.
2.The newest spray glue system automatic apply glue precisely without surface touching and operating.
3.environmental protection and save glue, maintenance and adjusting conveniently.

(3)Folding section
1.paperboard be run forward by former convey belts consisted of upand lower belt. The gap of entrance and up and lower belt can be adjusted automatically.
2.Pressure wheels of entrance are loaded by springs.
3.Solid folding beams with strong rigidity and good stability suit high speed running.
4.There are two set side pressure wheels against the folding knife to ensure folding lines precise.
5.Back end convey belt with vacuum holes prevent sliding to form shear fork.
6.Lower folding belt which speed is higher than vacuum belt avoid shear fork.
7.There are two set correcting wheels to ensure box square.
8.Folding beams move left and right automatically according orders.

(4)Driving section
1.Frequency conversion motor runs synchronizely with printer.
2.All synchronism belts driving are structure simple, noise lower, running steady and vibrate lower.
3.Moving parts are imported of ball screws and straight line rail.

(5)High speed counting ,stacking and export section
1.Photoelectric sensor counting precisely
2.Three group of servo motor finish the function of precise counting ,stacking and transfering out while high speed running.
3.Server control high speed separating bar to stack according required quantity per pile.
4.Pneumatic assistant supporting bars make boxes stacking flat.
5.Pile boxes ejected by pneumatic pushing plate in order.
6.Strong wind pressure which direction can be adjusted anywhere protect boxes bend upwards.
7.Backboard motorized move adjusting (automatically or manually) according box’s spec.
8.Both up and lower convey belts transfer pile boxes together.
9.The height of up belt can be adjusted automatically or manually according the quantity per pile.
10.Eject section can move to left and right to make boxes fall down on the center of table.
