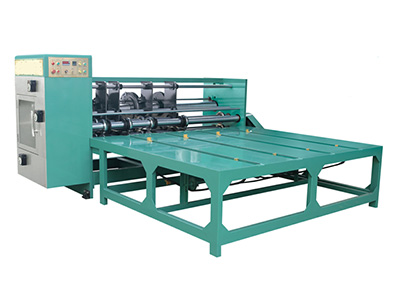

Chain Feeder Slotting machine


Technical Parameters：

Model PL-K1  14-25
Max. Speed 70pcs/min
Max. Feeding Size 1400x2500mm
Min. Feeding Size 620x350mm
Applicable Carton Thickness 2-11mm
Slotting Width 7mm
Angle Cutting Width 45mm
Max. Slotting Depth 300mm
Total Power(KW) 4.2KW
Weight 3500KG
Outlooking Size 3220x3255x1700mm
Power Supply 380V/AC  3Phrase 50HZ



Machine description:

2.1  Frequency conversion Motor adopted to control, can save the power and easy convenient For Operation.
2.2  4 knives are coupled, that can be forward or backward Left And Right Side adjusted at the same time, save time and energy.
2.3  Forward and backward jogged are available for the whole machine, easy and convenient adjusting.
2.4  Register/Motorized Phrase, the whole machine gears are
spraying lubricated by the gears pump, reduce the noise and
prolong the gears service life, increase the precision at the meanwhile.
2.5  Taper-lock coupler/Locking Assemblies Self-Centering is adopted for the whole machine, can eliminate the shaft head from anti-loose while using the old generation flat-type coupler.
2.6. The min. slotting gap for the Slotting knife R is
150*150*150*150mm, while the min. slotting gap for the L slotting knife is270*50*270*50mm.
2.7  One set of Special tools would be sent free with machine.
